60W Triac Dimmable Driver PWM Phase Cut Waterproof LED Driver For Outdoor

Name: 60W Triac Dimmable Driver PWM Phase Cut Waterproof LED Driver For Outdoor
Brand: KSPOWER
Price: 25.10 USD

Buy cheap 60W Triac Dimmable Driver PWM Phase Cut Waterproof LED Driver For Outdoor product

Place of Origin : Guangdong, China

Brand Name : KSPOWER

Model Number : KSHT-60W

Certification : UL/cUL Class2 CE FCC GS ENEC ROHS

MOQ : 100 pieces

Price : $25.10/pieces 100-499 pieces

Warranty(Year) : 5-Year

Lighting solutions service : Lighting and circuitry design

Output Power : 60W

Output Type : PWM

Input Voltage : 100-277V

Output Frequency : 50/60Hz

Output Current : 2.5A

Product Name : 60 Watts Waterproof Converter Transformer Power Supply 12V 24V 36V 48V

Output : 12V/24V/36V/48V

IP Rate : IP65,IP67

Application : LED Lighting

Efficiency : ≥ 88%

Warranty : 5 Years

Color : White Black

Material : Aluminium Case

Dimming mode : Triac / Phase-cut Dimmable

Contact Now

60W Triac Dimmable Driver PWM Phase Cut Waterproof LED Driver For Outdoor

Products Description

Phase cut Dimming LED Driver 60 Watts Waterproof Converter Transformer Power Supply 12V 24V 36V 48V for Outdoor LED Light

The KSPOWER - HT series phase cut dimmable led driver 60 Watt is one constant voltage solution, accept universal AC input voltage range from 100V to 277V, output voltage 12Volt 24Volt 36Volt 48Volt optional with greater operating efficiency and PFC function. The phase dimming led power supply use low profile metal aluminum case with or without junction box makes the ac dimmable led power supply solutions for LED strips, LED sign, billboard and landscape lighting. Featuring 10K frequency PWM output and IP67 rated waterproof environment protection rated for indoor or outdoor use, the led lights power supply provide 5 years warranty and outstanding led dimming performance.

Features:
* Input Voltage: Universal 100VAC to 277VAC, 50/60Hz for Residential, Commercial, and Industrial Use
* Single Channel & Constant Voltage mode
* Output Voltage: 12Volt/24Volt/36Volt/48Volt
* Driver Type: Class 2 Class P
* Enclosure:LISTED Enclosure with Junction Box / LISTED Enclosure without Junction Box
* Dimming: TRIAC or MLV / ELV Phase Dimmable Available
* Environmental: Dry and Damp
* Wiring Compartments with Knock-Outs for Clean and Easy Installation
* Current Limiting Overload Protection
* Flicker-Free
* Smooth Ripple Free Output Voltage
* IP67 Rated Enclosure for Indoor and Outdoor Use
* 5-Years Warranty
* UL/cUL CE FCC RoHS ENEC GS Listed, SELV, Type HL

Note:Any custom label/package/case is acceptable, provide OEM and ODM service

Input Voltage	100~277V AC 47~63Hz
Power Factor	PF≧0 98/115VAC, PF≧0 95/230VAC, PF≧0.9/277VAC, 80% with load
NO.	KSHT-60W12	KSHT-60W24	KSHT-60W36	KSHT-60W48
Output Voltage	12V	24V	36V	48V
Rated Current	5A	2.5A	1.67A	1.25A
Rated Power	60W
Ripple & Noise (max.)	200mVp-p	250mVp-p	250mVp-p	250mVp-p
Dimension(LWH)	1885836mm / 7.42.31.4 inch

Show Details

Dimming Connect Drawing

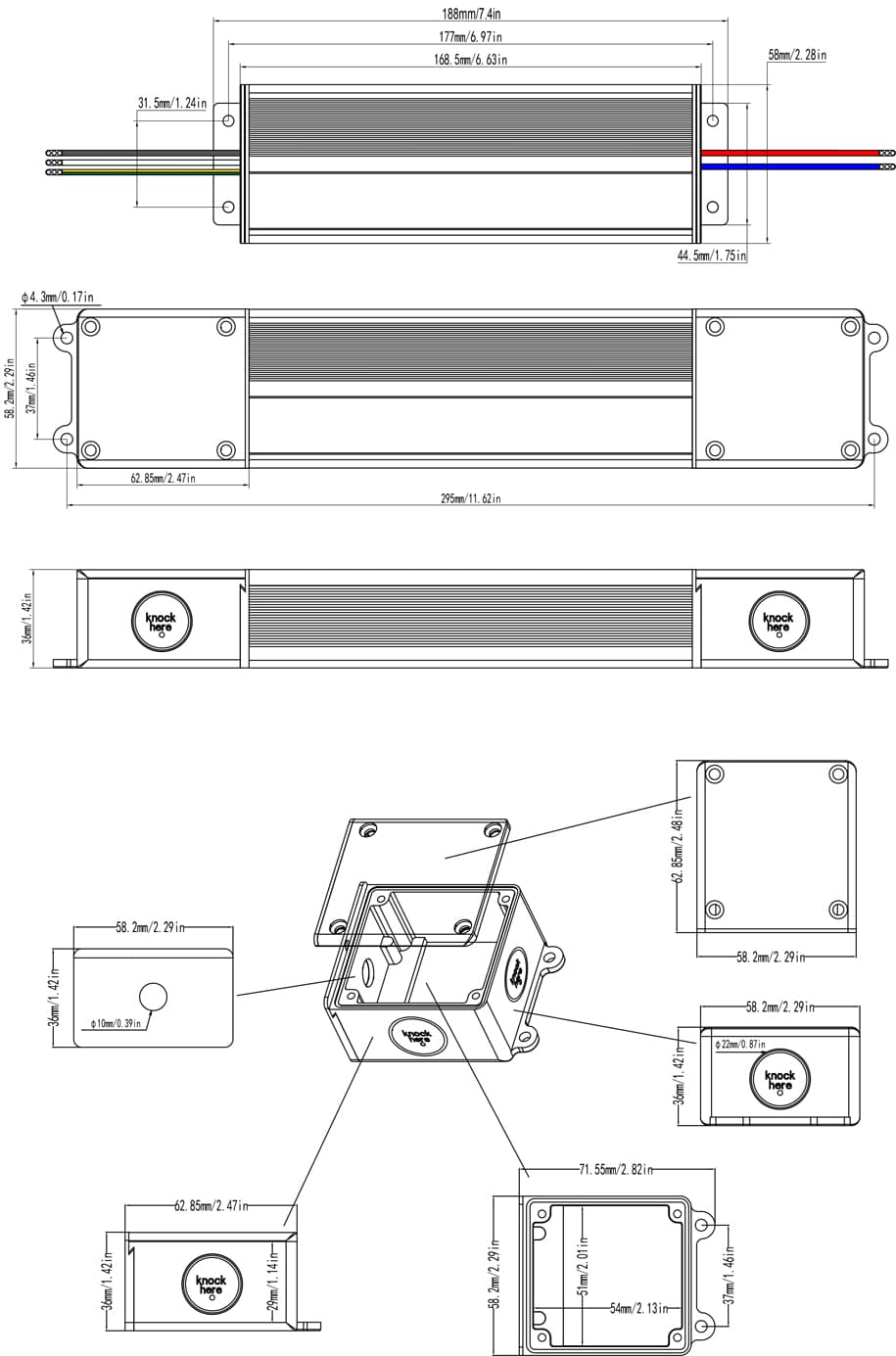

Dimension Drawing

Product packaging

1. Each one put in one small inner brown box, then 20 pcs put in one standard carton.

2. Sample is available.
3. Shipping method: available for express DHL/UPS/FedEx/TNT, Land, Ocean and others

Package	Piece/Carton(pcs)	Piece Weight(KG)
OEM package	20	0.84
Dimension/Brown Box(mm)	Dimension/Carton(mm)	Gross Weight/Carton(KG)
3136440	355330195	17.5

Applications
