Commercial Dimmable Magnetic Transformer RCL Lutron 10V Edge Wall UL PWM50W 36V 240V

Shenzhen Keysun Technology Limited
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Commercial Dimmable Magnetic Transformer RCL Lutron 10V Edge Wall UL PWM50W 36V 240V

Place of Origin : Guangdong, China

Brand Name : KS

Certification : UL cUL CE Class P ENEC Gs TYPE HL...

MOQ : 2 pieces

Price : $22-35/pieces

Warranty(Year) : 5-Year

Lighting solutions service : Lighting and circuitry design

Type : MANUAL SWITCH, Constant Voltage

Product Name : 240v led triac module rcl lutron 10v dimmer

Application : Street Light, Tunnel Light, Wall Lamp,Spot Light

Warranty : 5 Years

Output Mode : Pwm Output

Efficiency : 95%

Output : 12V 24V 36V 48V

Material : Aluminium Case

IP Rate : IP65

Contact Now

Commercial Dimmable Magnetic Transformer RCL Lutron 10V Edge Wall UL PWM50W 36V 240V
Commercial Dimmable Magnetic Transformer RCL Lutron 10V Edge Wall UL PWM50W 36V 240V
Commercial Dimmable Magnetic Transformer RCL Lutron 10V Edge Wall UL PWM50W 36V 240V

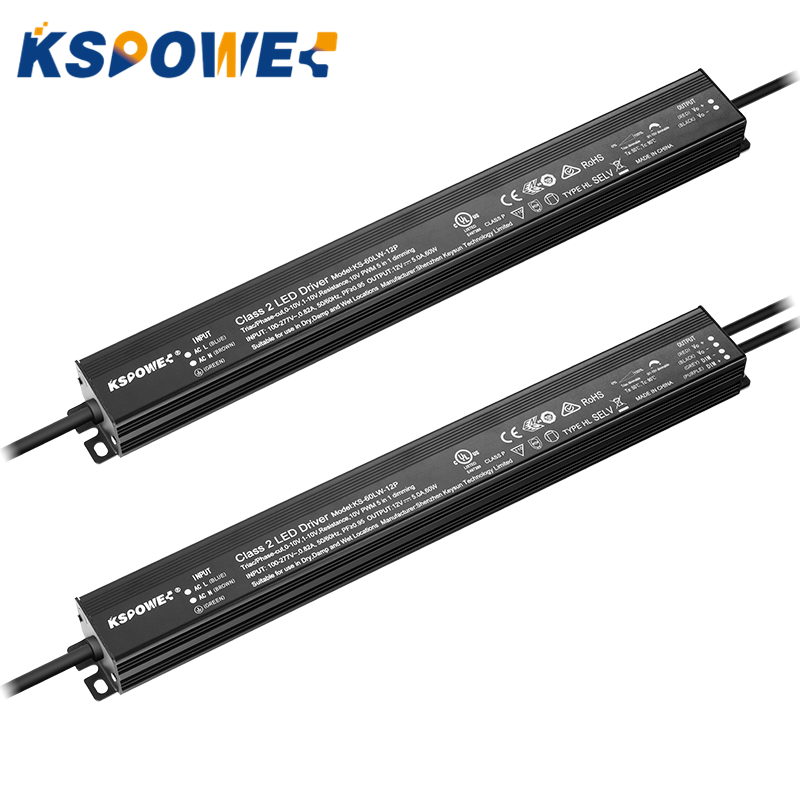

KSPOWER L SERIES – CONSTANT VOLTAGE
The L series LED Driver is one 30Watt 12Volt ultra slim SELV, Class 2, Class P, TYPE HL, 0-10V / 1-10V / TRIAC / Resistance / PWM
dimmable LED driver compatible with most AC wall dimmer including Lutron, Leviton and most other household dimmers making it the
perfect choice for tape lighting, tube lighting, linear lighting and multiple other commercial lighting applications.

The L series LED drivers is also available in a non-dimmable version.The UL cUL FCC CE ENEC GS Listed led driver aluminum
enclosure is rated IP67 for indoor or outdoor installations and includes a separate input and output wiring compartment for clean
and easy installation. The 24VDC LED driver transformer features hiccup mode, over current and short circuit protection, as well
as an efficiency over >88% resulting in a low operating case temperature.

110v 230v 277v input electrical voltage 24v outdoor light spotlight switches module outlet transformer phase led driver dimmer
30W12V Waterproof IP67 LED Driver Ultra Slim Transformer Triac Phase-cut Dimming 12V 24V 36V 48V Output


Input Voltage: Universal 100VAC to 277VAC, 50/60Hz for Residential, Commercial, and Industrial Use
Output Voltage: 12VDC, 24VDC, 36VDC, or 48VDC
Driver Type: CV Class P SELV PFC function
Enclosure: LISTED Enclosure with Junction Box / LISTED Enclosure without Junction Box

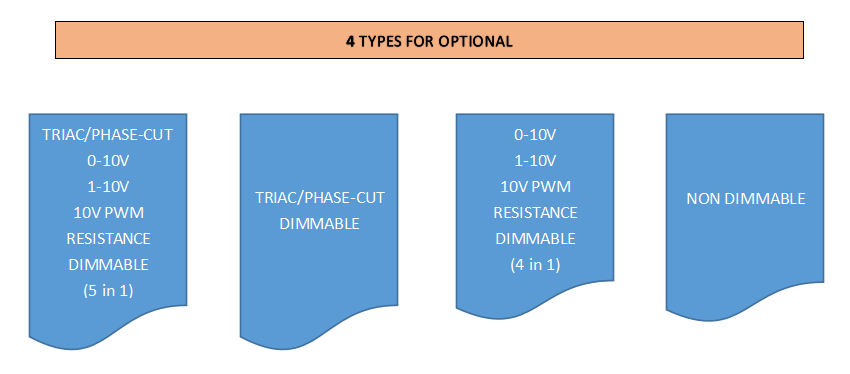

Dimming: PWM, TRIAC, 0/1-10V or MLV / ELV Dimmable; Non-Dimmable Available
Environmental: Dry and Damp

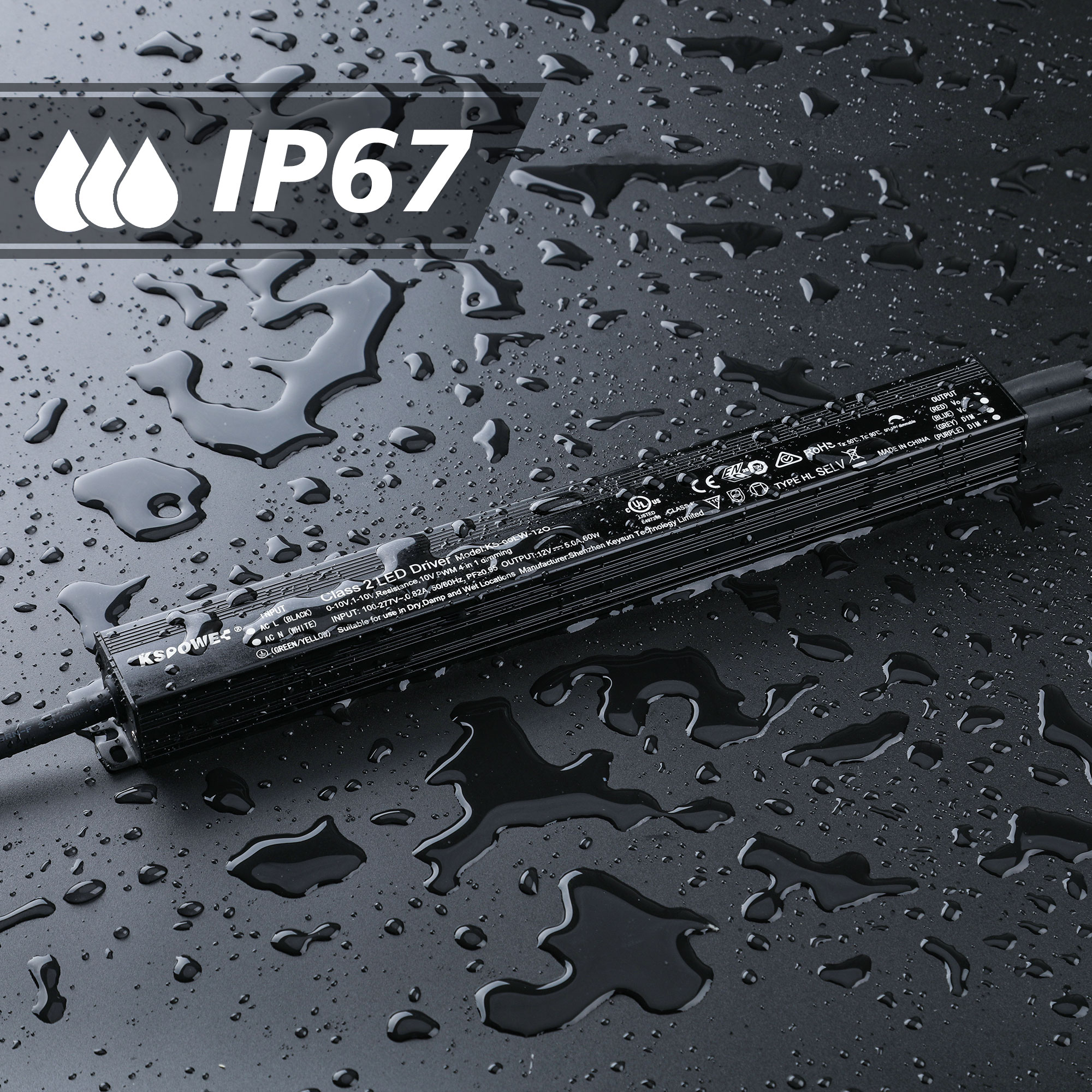

IP Rating: IP67

Features:

* Ultra slim height to 24.5mm

* Wiring Compartments with Knock-Outs for Clean and Easy Installation

* Current Limiting Overload Protection

* Flicker-Free

* Smooth Ripple Free Output Voltage

* IP67 Rated Enclosure for Indoor and Outdoor Use

* 5-Years Warranty

* UL/cUL FCC CE ENEC GS Listed, SELV, Type HL
Commercial Dimmable Magnetic Transformer RCL Lutron 10V Edge Wall UL PWM50W 36V 240V
Commercial Dimmable Magnetic Transformer RCL Lutron 10V Edge Wall UL PWM50W 36V 240V
Commercial Dimmable Magnetic Transformer RCL Lutron 10V Edge Wall UL PWM50W 36V 240V
Commercial Dimmable Magnetic Transformer RCL Lutron 10V Edge Wall UL PWM50W 36V 240V
Commercial Dimmable Magnetic Transformer RCL Lutron 10V Edge Wall UL PWM50W 36V 240V
Commercial Dimmable Magnetic Transformer RCL Lutron 10V Edge Wall UL PWM50W 36V 240V
Commercial Dimmable Magnetic Transformer RCL Lutron 10V Edge Wall UL PWM50W 36V 240V
Commercial Dimmable Magnetic Transformer RCL Lutron 10V Edge Wall UL PWM50W 36V 240V
NOW,GET MORE INFORMATIONS OF US !
Company Profile
Commercial Dimmable Magnetic Transformer RCL Lutron 10V Edge Wall UL PWM50W 36V 240V
Working Room
Commercial Dimmable Magnetic Transformer RCL Lutron 10V Edge Wall UL PWM50W 36V 240V
Exhibition
Commercial Dimmable Magnetic Transformer RCL Lutron 10V Edge Wall UL PWM50W 36V 240V
Certifications
Commercial Dimmable Magnetic Transformer RCL Lutron 10V Edge Wall UL PWM50W 36V 240V
Applications
Commercial Dimmable Magnetic Transformer RCL Lutron 10V Edge Wall UL PWM50W 36V 240V
Product packaging
1.Sample is available.
2.Shipping method: available for express DHL/UPS/FedEx/TNT, Land, Ocean and others.
3. for 60W power adapter : each one put in one small inner brown box, then 50 pcs put in one standard carton.
Package
Piece/Carton(pcs)
Piece Weight(KG)
OEM package
50
0.26
Dimension/Brown Box(mm)
Dimension/Carton(mm)
Gross Weight/Carton(KG)
155*85*35
455*370*175
14
Commercial Dimmable Magnetic Transformer RCL Lutron 10V Edge Wall UL PWM50W 36V 240V
